Gate Operator Destination:

---



Range of operators for sliding gates weighing up to 600 Kg. Maximum leaf speed up to 16 m/min. Residential use.

Gate Operator description:

---



The thrust required to operate safely. A smart torque management system based on the microprocessor technology of BFT control units. Acquiring data from several indicators, it updates the level of thrust required to perform the operation. D-Track also facilitates the installer in providing for the certifications required by law. Conventional control units do not "read" the exact position of the gate and consequently apply constant thrust levels, without ensuring stable sensitivity during the opening and closing operations. BFT control devices record the slightest variation in the gate or door force, for example due to differences in temperature or wear, constantly supplying the optimum torque to the motor. A conventional control unit could not detect these thrust variations, which would result in it indicating the presence of non-existent obstacles. The BFT system therefore ensures maximum safety and perfect functioning of the system, regardless of the weather and temperature conditions and degree of mechanical wear.

Gate Operator Technical Data:

---

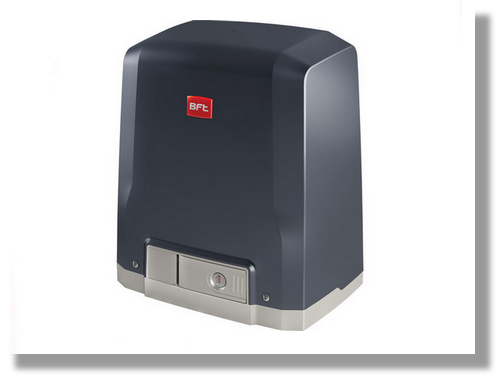

BFT	DEIMOS BT KIT A400 FRA
U-Link	No
Control unit	Hamal sl1
Board power supply	230 v
Power supply	24 v
Power input	50 w
Gate speed	12 m/min
Type of limit switch	Electromechanical
Pinion module	4
Pinion rotation speed	Rpm
Slowdown	Yes
Impact reaction	D-track
Locking	Mechanical
Release	Lever-operated with personal key
Frequency of use	Intensive
Environmental conditions (min)	-20 °c
Environmental conditions (max)	55 °c
Protection rating	Ip24
Actuator weight	7 kg
Voltage	24 v
Max Leaf	400 kg
Application context	Residential
