AGENTS LV

TM/RF CONTROLLERS

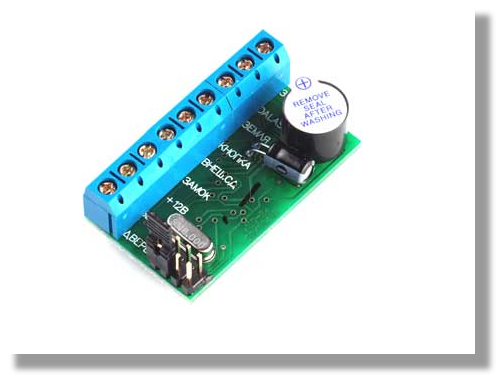

Simplest standalone controller

Simplest standalone controller

Fits all TN/EM-Marine 125Khz access systems






Access Control price: 8.43€  (Not inc tax)
VAT 21%: Not included in the price
Access Control Warranty: 2 years
Access Control Delivery: In Stock
Wholesale discount to: up to 20%

PRODUKT DETAILS

Access Control Destination

Most cost effective
Protection against wrong connection
For both electromechanical and electromagnetic locks
Mode ACCEPT *
Mode TRIGGER *
Mode Concierge *
Quick installation and connection
Programming the master keys, blocking keys
Possible to transfer database between controller and DS1996 key
Programming from a PC via adapter Z-2 base

Access Control Description

Power supply: 8-18V DC
Current consumption: 20 mA
Switching current: 5A
Number of keys / cards (max): 5460 pcs.
Key type: DS1990A, RFID Card / Key Chains
Built-in non-volatile memory (EEPROM)
FET transistor outputs: 1pc.
Number of connected readers: 1pc.
Adjustment of lock from 0 to 220 sec.
Light / Sound indication modes: buzzer, LED
Jumper to select the type of lock: electromagnetic, electromechanical
Operating temperature: -40 ° C to +50 ° C
Dimensions (mm): 45х25х14

       Z5R manual

Z5R

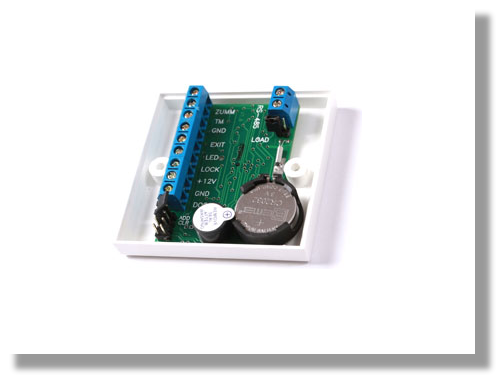

Simplest network controller

Simplest network controller

Fits all TM/EM-Marine 125Khz access systems






Access Control price: 59.28€  (Not inc tax)
VAT 21%: Not included in the price
Access Control Warranty: 2 years
Access Control Delivery: In Stock
Wholesale discount to: up to 20%

PRODUKT DETAILS

Access Control Destination

Cost effective
Quick installation and connection
Standalone and network operation
Protection against wrong connection
Select the type of lock
* Mode ACCEPT
* Mode Blocking

Access Control Description

Power supply: 8-18V DC
Current consumption: 20 mA
Number of connected readers: 2 pcs.
Type (protocol) connected readers: Wiegand26, Dallas Touch Memory
FET transistor outputs: 1pc.
Switching current: 5A
Number of keys / cards (max): 2021pcs.
Number of recorded events (max): 2048pcs.
Communication protocol controllers: RS485
Communication rate: 19200 baud/57600baud
The maximum line length: 1200m
Operating temperature: -40 ° C to +50 ° C (excluding battery)
Size (mm): 65х65х18

       Z5R Net manual

Z5R Net

Z5R Net

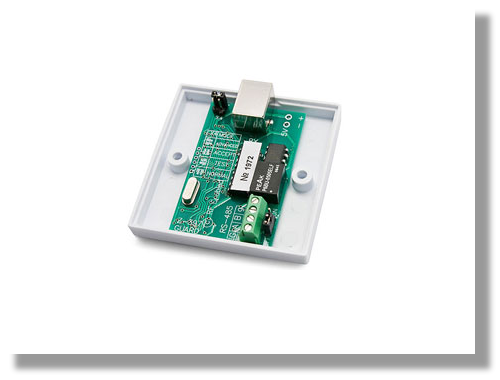

Decoder Guard USB/RS485

Decoder Guard USB/RS485

Fits GATE POWER access systems






Access Control price: 77.88€  (Not inc tax)
VAT 21%: Not included in the price
Access Control Warranty: 2 years
Access Control Delivery: In Stock
Wholesale discount to: up to 20%

PRODUKT DETAILS

Access Control Destination

Galvanic isolation of RS-485 and PC
Do not need a separate power supply
Support in TEST mode and ACCEPT network controllers
Automatic detection of speed and direction of exchange
Display of transmission direction
USB Powered

Access Control Description

Dimensions: 65Lx65Wx18H(mm)
Operating voltage: 5VDC USB
Speed Handover to: 115 kbit/s
Housing material: ABS plastic
Colour: White
Operating temperature: -10c +50c
Light / Sound indication modes: LED

       Guard USB/RS485 manual

Guard USB/RS485

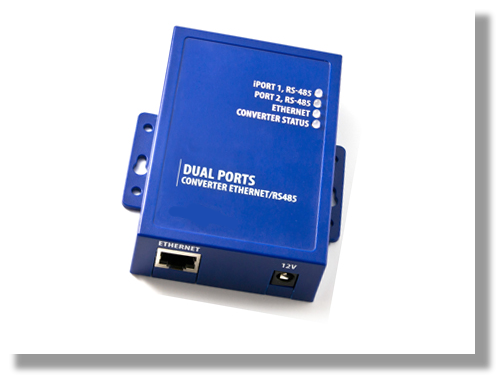

Decoder Ethernet/RS485 x2 WEB

Decoder Ethernet/RS485 x2 WEB

Fits GATE POWER access systems






Access Control price: 121.68€  (Not inc tax)
VAT 21%: Not included in the price
Access Control Warranty: 2 years
Access Control Delivery: In Stock
Wholesale discount to: up to 20%

PRODUKT DETAILS

Access Control Destination

Key Features:
Working with cloud services access control via HTTP
(Does not require additional network configuration)
Access to devices on the RS-485 bus via Ethernet
Two RS-485 ports (one is galvanically isolated to 1000 volts)
Work on the TCP / IP protocol
Modes the connection - the "client" and / or "server"
Work through a proxy server (software Guard Light)
Support for NVT (Network Virtual Terminal)
Working with software oriented normal COM port
Availability of drivers for most operating systems (virtual COM port)
Configuration via USB (Flash Disk), as well as remotely via TELNET
Firmware update
Mechanical interlocking configuration changes and firmware updates
Check the integrity of packet transmission RS485
Display mode

Access Control Description

Dimensions: 100Lx85Wx30H(mm)
Operating voltage: 12V DC
Ehternet: Interface Ethernet RJ45 (10 / 100BASE-T, Ethernet II and IEEE 802.3)
Protocols IPv4, ARP, TCP, TELNET, ICMP, UDP, DHCP, HTTP, NVT
RS485: Number of lines of the RS-485 - 2
Speed Handover to: up to 115,200 bits/sec
Galvanic isolation line 1 1 kV
Galvanic isolation line 2 no
USB Connector: USB Type B Version - USB 2.0
Mode: Full-Speed
Class: Mass-storage device
Current consumption: no more than 100 mA (at 12V DC)
Weight: 100 grams
Housing material: ABS plastic
Operating temperature: - 0c`70c
Light / Sound indication modes: LED

       Ethernet/RS485 x2 WEB manual

Ethernet/RS485 x2 WEB
